300QJH360-55/2-90KW 690V 50HZ 2507 Material Seawater Desalination Pump

opis produktu

300QJH360-55/2-90KW 690V 50HZ 2507 Material Seawater Desalination Pump

High-Performance Submersible Pump for Harsh Marine Environments

In modern seawater desalination projects, pump reliability and corrosion resistance are critical factors that directly impact system efficiency and long-term operating costs. The 300QJH360-55/2-90KW submersible pump, specially designed for seawater desalination plants, offers outstanding performance under high salinity and continuous-duty conditions.

This article provides a comprehensive overview of this model, highlighting its technical advantages, material benefits, and application scenarios to help you choose the right solution for your desalination system.

Product Overview

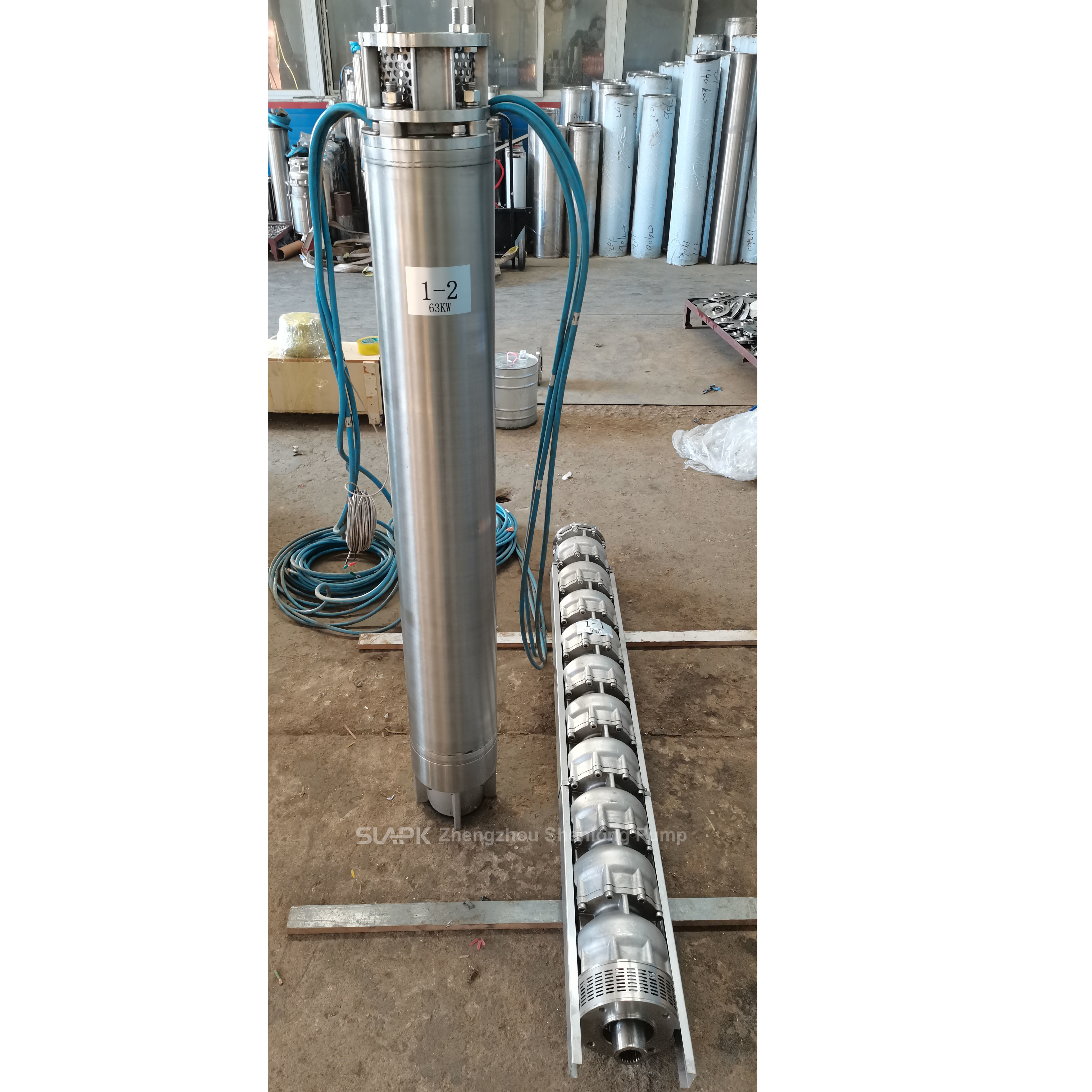

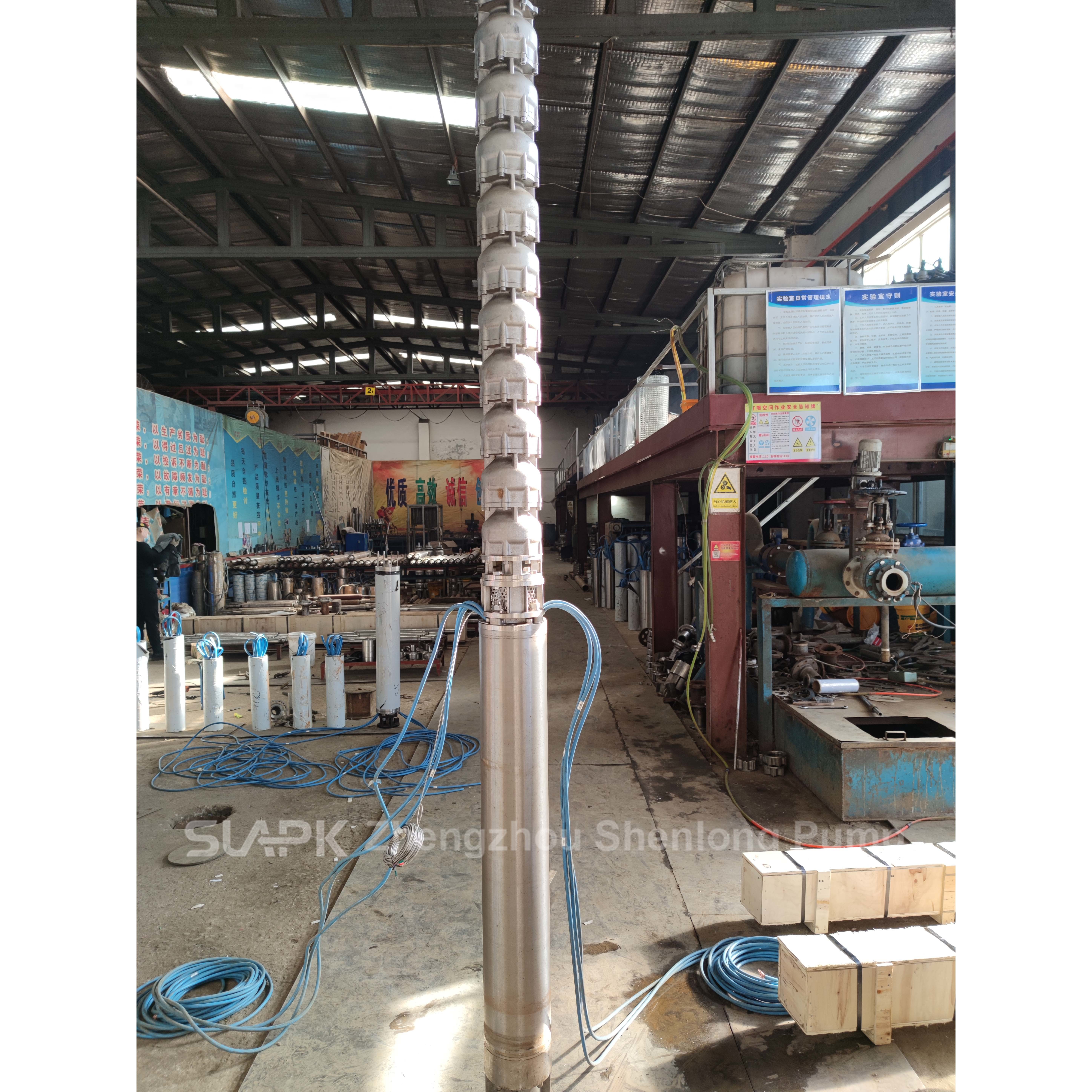

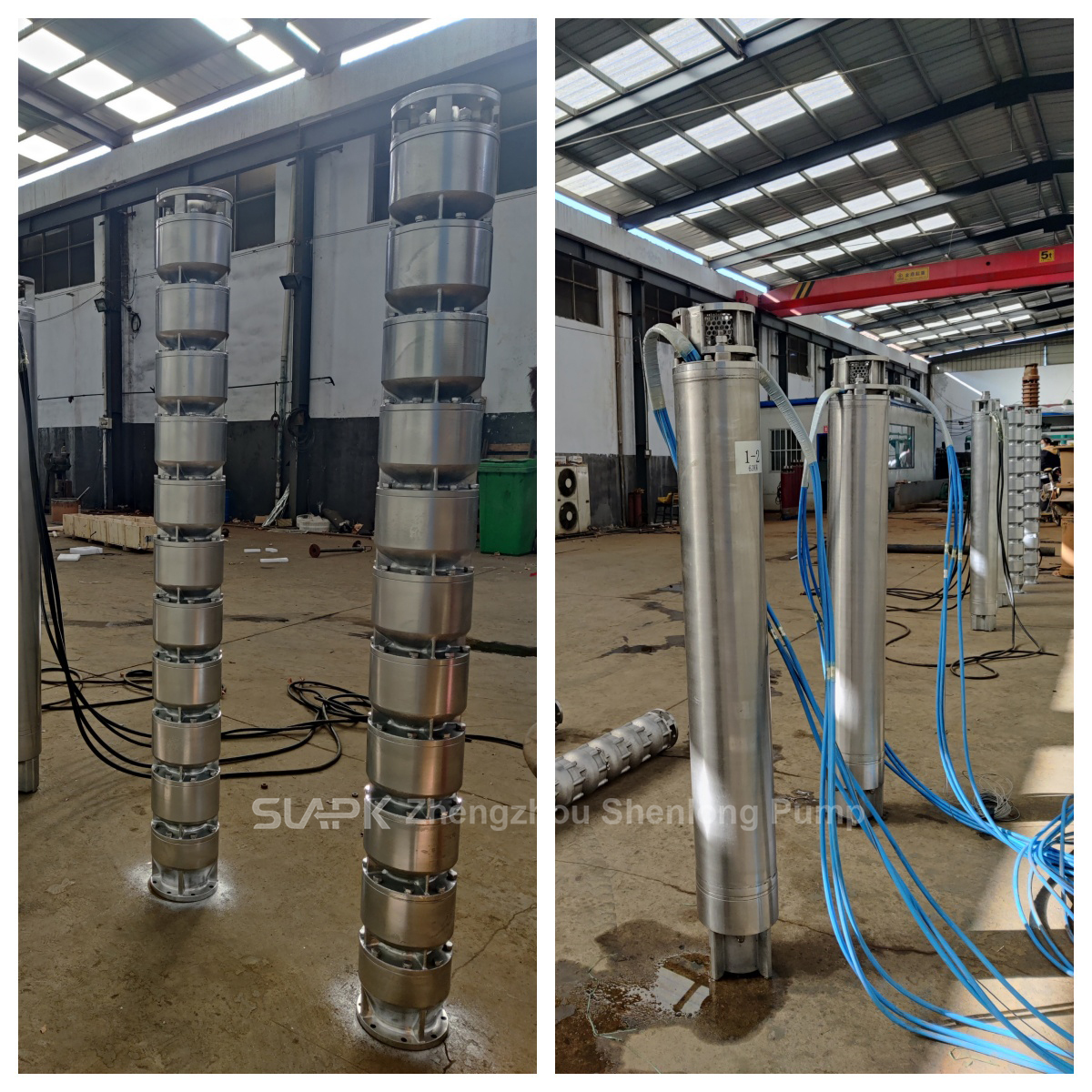

The 300QJH360-55/2-90KW seawater submersible pump is engineered for high-flow, medium-head applications in desalination plants. With a robust structure and advanced material selection, it ensures stable operation even in the most demanding marine environments.

Key Specifications

• Model: 300QJH360-55/2
• Flow Rate: 360 m³/h
• Head: 55 meters
• Power: 90KW
• Voltage: 690V
• Frequency: 50Hz
• Material: 2507 Super Duplex Stainless Steel
• Installation: Vertical submersible


Why Choose 2507 Super Duplex Stainless Steel?

One of the core advantages of this desalination pump is the use of 2507 super duplex stainless steel, a material specifically developed for extreme corrosive environments such as seawater.

Benefits of 2507 Material

• Excellent Corrosion Resistance
  Superior resistance to chloride-induced corrosion, pitting, and crevice corrosion.
• High Mechanical Strength
  Nearly twice the strength of standard austenitic stainless steels, ensuring longer service life.
• Anti-Cavitation Performance
  Maintains structural integrity under high-pressure and high-flow conditions.
• Extended Service Life
  Reduces maintenance frequency and total lifecycle cost.

For desalination plants, where pumps are constantly exposed to saltwater, choosing the right material is not optional—it is essential.

Designed for Seawater Desalination Systems

The 300QJH series pump is purpose-built for desalination applications, including:

1. Seawater Intake Systems

Efficiently transports large volumes of seawater from the ocean to pretreatment systems.

2. Reverse Osmosis (RO) Feed Support

Ensures stable upstream water supply for RO systems, improving overall desalination efficiency.

3. Brine Discharge Handling

Capable of handling high-salinity brine with minimal corrosion impact.

Performance Advantages

High Efficiency & Energy Saving

Optimized hydraulic design reduces energy consumption while maintaining high flow output.

Stable Continuous Operation

Designed for 24/7 operation in industrial desalination plants with minimal downtime.

Low Maintenance Requirements

Corrosion-resistant materials and precision engineering reduce wear and tear.

Easy Installation

Submersible design eliminates the need for complex suction systems and reduces installation costs.

Application Scenarios

This seawater desalination pump is widely used in:

• Large-scale seawater desalination plants
• Coastal industrial water supply systems
• Offshore platforms and marine engineering
• Island freshwater supply projects
• Power plant cooling water systems

Why This Pump is Ideal for Your Project

Choosing the 300QJH360-55/2-90KW desalination pump means investing in:

• Long-term reliability in harsh seawater environments
• Reduced operational and maintenance costs
• High efficiency and stable performance
• Advanced material technology for maximum durability

Whether you are building a new desalination facility or upgrading an existing system, this pump provides a dependable and cost-effective solution.

Conclusion

In seawater desalination, equipment durability and efficiency are non-negotiable. The 300QJH360-55/2-90KW 690V 50HZ submersible pump, constructed with 2507 super duplex stainless steel, delivers exceptional performance, corrosion resistance, and longevity.

If you are looking for a high-quality seawater desalination pump that can withstand extreme conditions while maintaining peak efficiency, this model is an excellent choice.
