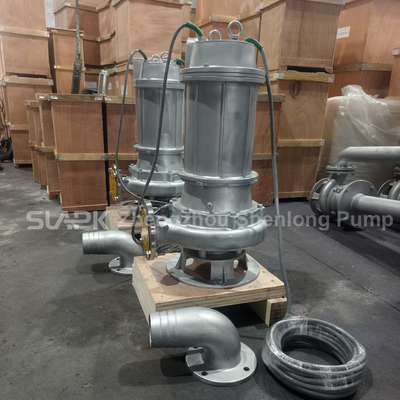

WQP high efficiency 100m3/h stainless steel submersible sewage pump
WQP high efficiency 100m3/h stainless steel submersible sewage pump
WQP high efficiency 100m3/h stainless steel submersible sewage pump WQP high efficiency 100m3/h stainless steel submersible sewage pump WQP high efficiency 100m3/h stainless steel submersible sewage pump WQP high efficiency 100m3/h stainless steel submersible sewage pump WQP high efficiency 100m3/h stainless steel submersible sewage pump WQP high efficiency 100m3/h stainless steel submersible sewage pump
Skontaktuj się teraz

WQP high efficiency 100m3/h stainless steel submersible sewage pump

Minimum Order Quantity : 1 piece Cena : Please feel free to contact us
Packaging Details : Submersible sewage pump is packed with wooden case or 20 inch container. Delivery Time : 2-5 working days
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram Supply Ability : 8695 pieces per month
Place of Origin: Henan, China Nazwa handlowa: APK
Orzecznictwo: ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER Model Number: WQP

Szczegóły informacji
Flow: 5m3/h-3500m3/h submersible sewage pump Head: 5m-200m
Power: 2.2kw-220kw submersible sewage pump Frequency: 3 phase 50hz/60hz
Voltage: 380v/440v or as per request Material: Cast iron/SS304/SS316/SS316L/Duplex stainless/SS904
Motor: Copper wire Protection class: IP68
Podkreślić:

stainless steel submersible sewage pump

,

high efficiency submersible pump

,

100m3/h sewage pump with warranty

opis produktu


WQP high efficiency 100m3/h stainless steel submersible sewage pump

100m3/h stainless steel submersible sewage pump Product Overview

The WQP Stainless Steel Submersible Sewage Pump is specifically designed for handling wastewater containing solid particles and fibrous materials. Made from high-quality stainless steel, it boasts strong corrosion resistance and a long service life. This pump is suitable not only for residential wastewater discharge but also finds wide application in municipal projects, construction sites, mining, and other scenarios requiring sewage treatment.

100m3/h stainless steel submersible sewage pump Product Main Features

  • High Efficiency & Energy Saving: With an optimized hydraulic model design, this pump offers higher efficiency, ensuring powerful suction capabilities while achieving energy savings and emission reductions.
  • Robust and Durable: The selection of superior stainless steel material effectively resists corrosion, ensuring stable operation over a long period.
  • Easy Maintenance: Featuring a compact and rational structure, it simplifies disassembly and maintenance, significantly reducing users' post-maintenance costs.
  • Safety and Reliability: Equipped with multiple protection devices such as overheating protection and leakage protection, ensuring safety during use.

Structure Description of WQP Stainless Steel Submersible Sewage Pump

The WQP series stainless steel submersible sewage pumps consist of two parts: the motor and the pump, separated by an oil isolation chamber and mechanical seal components, making them electromechanical integrated products. The motor and pump share the same shaft (rotor), resulting in a shorter overall pump length and a compact structure. It comes with various protective devices to ensure reliable pump operation. The main components function as follows:

  • Signal Line: Comes with a full-protection water pump control cabinet, providing comprehensive protection to the pump against water leakage, phase failure, short circuit, overheating, motor overload, etc.
  • Motor Stator: Uses B or F class insulation.
  • Leakage Sensor: Installed in the oil chamber, it can send signals to the control system to protect the pump when water enters due to damaged mechanical seals.
  • Mechanical Seal: Employs dual-seal series connection made of new hard-wearing and corrosion-resistant tungsten carbide material, featuring reliable sealing, wear resistance, and a long lifespan.
  • Impeller: Designed with single or double channel structures, it has strong passing capacity, capable of passing large materials and fibrous waste, reducing blockages and entanglement issues.
  • Pump Body: Used in conjunction with the impeller to achieve high efficiency of the pump.
  • Sealing Ring: Located at the mouth ring of the pump body, it can be replaced when wear occurs to ensure the pump operates at optimal efficiency.


WQP high efficiency 100m3/h stainless steel submersible sewage pump 0


WQP high efficiency 100m3/h stainless steel submersible sewage pump 1


WQP high efficiency 100m3/h stainless steel submersible sewage pump 2


WQP Stainless Steel Submersible Sewage Pump Parameters:


Model Outlet diameter (mm) Flow (m3/h) Head (m) Power (kw) Speed (r/min)
WQP50-18-30-3 50 18 30 3 2900
WQP50-40-15-4 50 40 15 4 2900
WQP50-25-32-5.5 50 25 32 5.5 2900
WQP50-20-40-7.5 50 20 40 7.5 2900
WQP65-25-15-2.2 65 25 15 2.2 2900
WQP65-25-30-4 65 25 30 4 2900
WQP65-30-40-7.5 65 30 40 7.5 2900
WQP65-35-50-11 65 35 50 11 2900
WQP65-35-60-15 65 35 60 15 2900
WQP80-43-13-3 80 43 13 3 2900
WQP80-40-15-4 80 40 15 4 2900
WQP80-65-25-7.5 80 65 25 7.5 2900
WQP100-110-10-5.5 100 110 10 5.5 1450
WQP100-100-15-7.5 100 100 15 7.5 1450
WQP100-80-20-7.5 100 80 20 7.5 1450
WQP100-100-25-11 100 100 25 11 1450
WQP100-100-30-15 100 100 30 15 1450
WQP125-130-15-11 125 130 15 11 1450
WQP125-130-20-15 125 130 20 15 1450
WQP150-150-13-11 150 150 13 11 1450
WQP150-180-15-15 150 180 15 15 1450
WQP150-180-20-18.5 150 180 20 18.5 1450
WQP150-180-25-22 150 180 25 22 1450
WQP150-180-30-30 150 180 30 30 1450
WQP150-130-30-22 150 130 30 22 1450
WQP150-200-30-37 150 200 30 37 1450
WQP150-200-50-55 150 200 50 55 1450
WQP200-300-7-11 200 300 7 11 1450
WQP200-250-11-15 200 250 11 15 1450
WQP200-250-15-18.5 200 250 15 18.5 1450
WQP200-400-10-22 200 400 10 22 1450
WQP200-400-13-30 200 400 13 30 1450
WQP200-400-30-45 200 400 30 45 1450
WQP200-400-32-55 200 400 32 55 1450
WQP200-400-45-75 200 400 45 75 1450
WQP200-400-50-90 200 400 50 90 1450
WQP200-300-65-110 200 300 65 110 1450
WQP200-300-15-22 200 300 15 22 1450
WQP200-250-22-30 200 250 22 30 1450
WQP200-350-25-37 200 350 25 37 1450
WQP250-500-7-22 250 500 7 22 1450
WQP250-600-9-30 250 600 9 30 1450
WQP250-600-9-37 250 600 9 37 1450
WQP250-600-15-45 250 600 15 45 1450
WQP250-600-20-55 250 600 20 55 1450
WQP250-600-25-75 250 600 25 75 1450
WQP300-800-12-45 300 800 12 45 1450
WQP300-800-15-55 300 800 15 55 1450
WQP300-800-20-75 300 800 20 75 1450
WQP300-100-25-110 300 1000 25 110 1450
WQP350-1100-10-55 350 1100 10 55 1450
WQP350-1000-15-75 350 1000 15 75 1450
WQP400-1500-8-55 400 1500 8 55 980
WQP400-1300-13-75 400 1300 13 75 1450
WQP400-1500-10-75 400 1500 10 75 980
WQP400-1500-18-110 400 1500 18 110 1450


Stainless Steel Submersible Sewage Pump Fault analysis and troubleshooting

 Fault Phenomenon

 Analysis of Causes

Exclusion Method

Traffic is insufficient



Or no water comes out

1. The impeller rotates incorrectly

2. Whether the valve is open and in good condition

3. The pipeline is blocked

4. Too low speed

5. Too high head

6. The density of the pumped medium is large

7. High medium viscosity

8. Seal ring damage (at the mouth ring)

1. Adjust the rotation direction of impeller

2. Check, maintain and eliminate

3. Clear up debris

4. Check electrical equipment and circuits

5. Change the pump or reduce the head

6. Dilute with water to reduce concentration

7. Reduce viscosity

8. Replacement

 fluctuation of service

1. Imbalance of impeller

2. Bearing damage

1. Send to the manufacturer for replacement or correction

2. Replace the impeller

The pump cannot be started

1. Deficiency

2. The impeller is stuck

3. Circuit, joint or cable open circuit

4. Stator winding is burnt out

5. Electrical control is faulty

1. Check the circuit for repair

2. Remove debris

3. Test and repair with an ohmmeter

4. Repair and replace the winding

5. Repair or replace

The current is too high

1. Low working voltage

2. Blockage of pipeline and impeller

3. The liquid to be pumped is too thick or viscous

4. Too high lift

1. Adjust the working voltage

2. Clean the pipeline and replace the winding

3. Change density or viscosity

4. Reduce traffic and increase traffic

Low insulation resistance

1. Leakage of cable power terminal

2. Cable damage

3. Leakage caused by mechanical seal wear

4. All O-rings fail

5. The shell is corroded by the medium and leaks water

1. Tighten the compression nut

2. Replacement

3. Replacement

4. Replacement

5. Repair


Should you have any questions, feel free to contact us. We have professional sales and technical teams ready to provide you with specialized solutions. Contact us via email at enquiry02@apkpump.com or WhatsApp at +86 17537187726.
